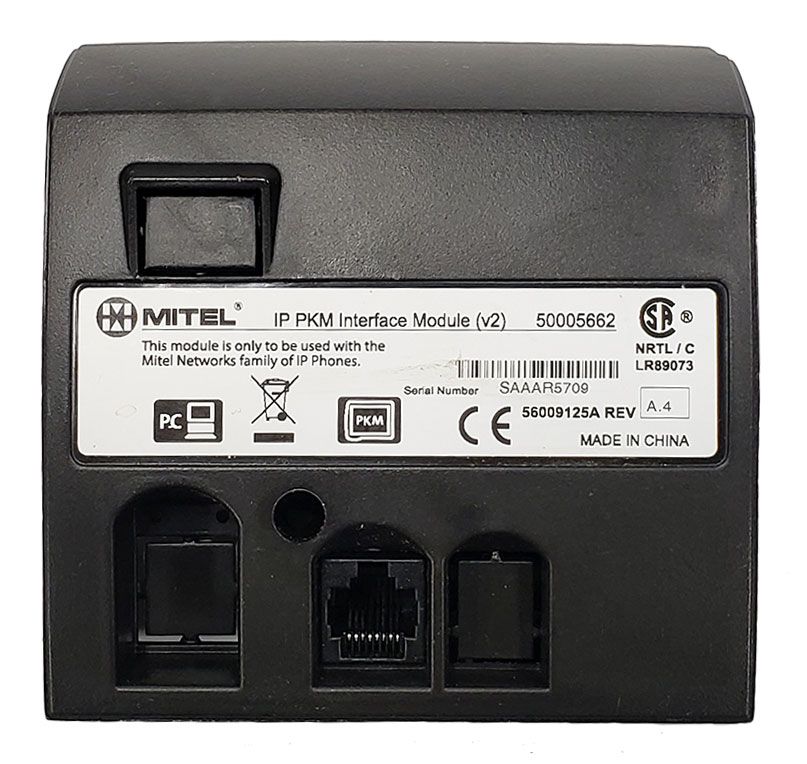

Mitel IP PKM Interface Module V2 (50005662)

Mitel IP PKM Interface Module V2 (50005662)

Mitel IP PKM Interface Module V2 (50005662)
Please call for availability.

The Mitel IP PKM Interface Module V2 allows you to connect compatible Mitel 5200, 5300, and 8500 series phones to the Mitel IP PKM 12/48.

Mitel IP PKM Interface Module V2 Features

  • Allows you to connect a Mitel 5412 or 5448 Programmable Key Module to your Mitel IP or digital telephone
  • Can connect a single Mitel 5412 IP PKM to a Mitel 5220/5224/5235/5324/5330/5340 IP phone
  • Can connect a single Mitel 5412 IP PKM to a Mitel 8528/ 8568 digital phone
  • Can connect up to two Mitel 5448 IP PKMs to a Mitel 5220/5224/5235/5324/5330/5340 IP phone for a maximum of 96 additional keys (supported by a Mitel Communications Director (MCD), 3300 IP Communications Platform (ICP) or SX-200 ICP)
  • Can connect up to two Mitel 5448 IP PKMs to a Mitel 8528/8568 and 5224/5324 IP Phone for a maximum of 96 additional keys (supported by a 5000 Communications Platform)

Power Requirements

Compatibility

  • Compatible with Mitel 5220, 5224, 5235, 5324, 5330, 5340, 8528, 8568
  • Mitel 3300 ICP release 9.0 UR1 or later
  • Mitel SX-200 ICP release 4.0 UR5 or later
