Avaya J179 TSG Secure IP Phone (700514740, DTD-J179-02) | The Avaya J179 TSG Secure IP phone is an elite, 8-line VoIP phone for executives and power users. Tightly integrated with the Avaya Aura and IP Office platforms, it leverages your enterprise IP network to deliver sophisticated voice communications from headquarters, remote locations, or home offices. It features TSG-6 Class A security certification and ensures positive disconnect capabilities as a counter measure for audio surveillance.
Avaya J179 Standard Features
- 3.5” (diagonal) color display - 320 x 240 pixels
- Multi-line IP phone
- 8 line-feature keys with dual LEDs (red/green)
- 4 context sensitive soft keys
- 24 programmable button slots for call appearance and feature buttons; 3 pages of 8 (Dual Column Mode) or 6 pages of 4 (Single Column Mode)
- Supports SIP-AST for enhanced features and integration on Avaya Aura
- Supports CCMS over SIP for enhanced features and integration on IP Office
- Supports H.323 software for integration with Avaya Communication Manager and Avaya IP Office
- Wideband audio in handset and headset
- Integrated RJ9 headset port with Electronic Hook Switch (EHS)
- Supports optional J100 Wireless Module for Wi-Fi connectivity and/or Bluetooth wireless headset
- WLAN functionality requires the use of J100 SIP 2.0 or later software
- Bluetooth functionality requires the use of J100 SIP 4.0.0 or later software
- Built in volume boost control in handset for hearing impaired
- Mute key with mute alerting
- Dual 10/100/1000 Gigabit Ethernet ports to support co-located PC
- Supports up to three JBM24 Button Modules
- Supports up to three JEM24 Expansion Modules
- Powered via included CIS Secure power interface with required power supply for TSG-6 Class A deployment
Enhanced TSG Security Features
- TSG-6 Class A certification
- Manual TSG operation button
- Ensures the positive disconnect capabilities as a counter measure for audio surveillance even when the device is on-hook by limiting the following threats
- Installation of a clandestine technical surveillance device
- Application of externally generated electrical voltages or control signals onto the telephone line
- Modification of the telephone equipment or control unit software
- Allows on-hook security features to be engaged while in a call providing Hold and Mute security
- Speakerphone functionality is enabled on the device and is protected with
the on-hook security of the positive disconnect electronics but can be
administratively disabled via the Avaya Aura
Communication Manager
Compatibility
- Avaya Aura Platform 6.3 FP4
- Avaya IP Office 11.0 or higher
- Broadsoft Broadworks R21SP1
Includes

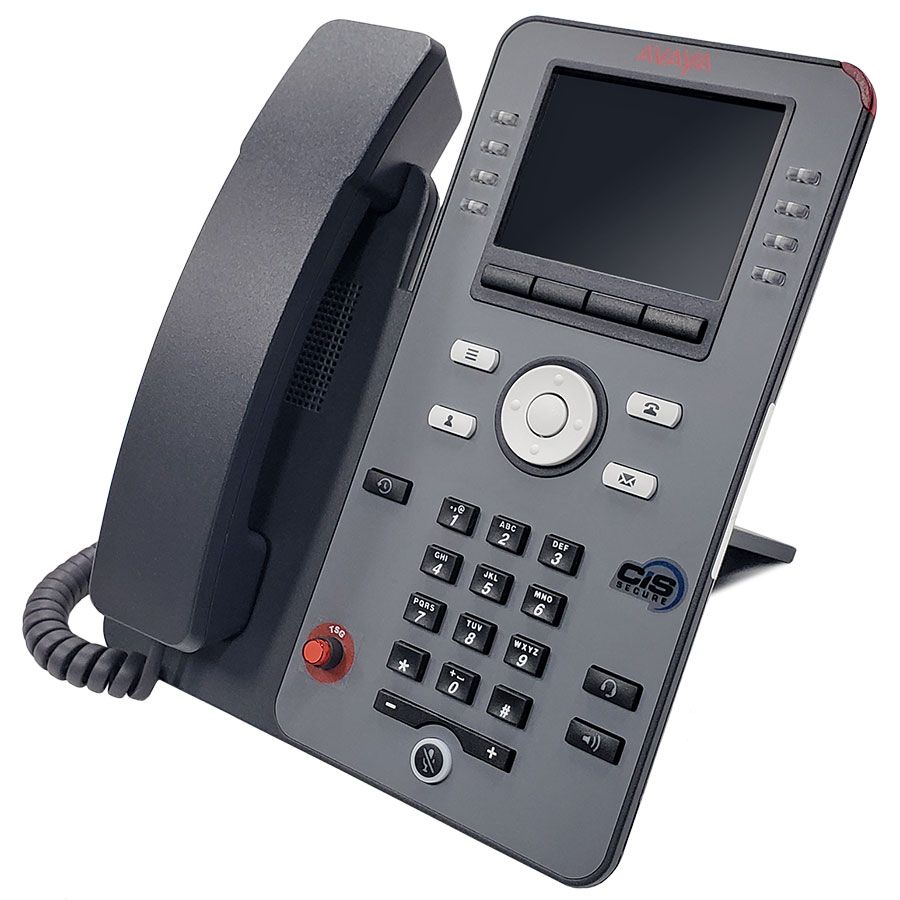

- Avaya J179 TSG IP phone (DTD-J179-02-A)

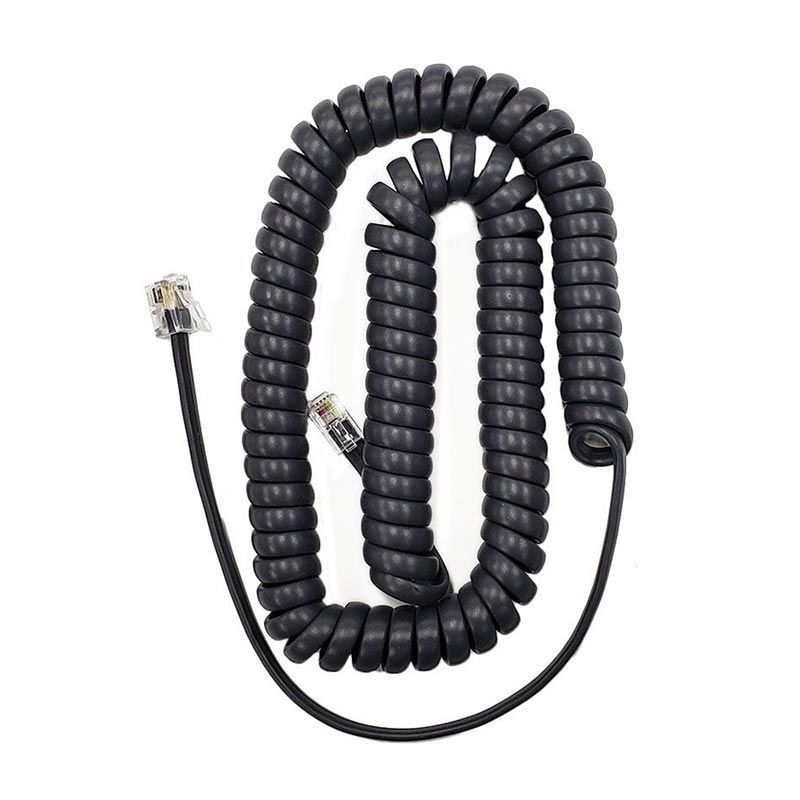

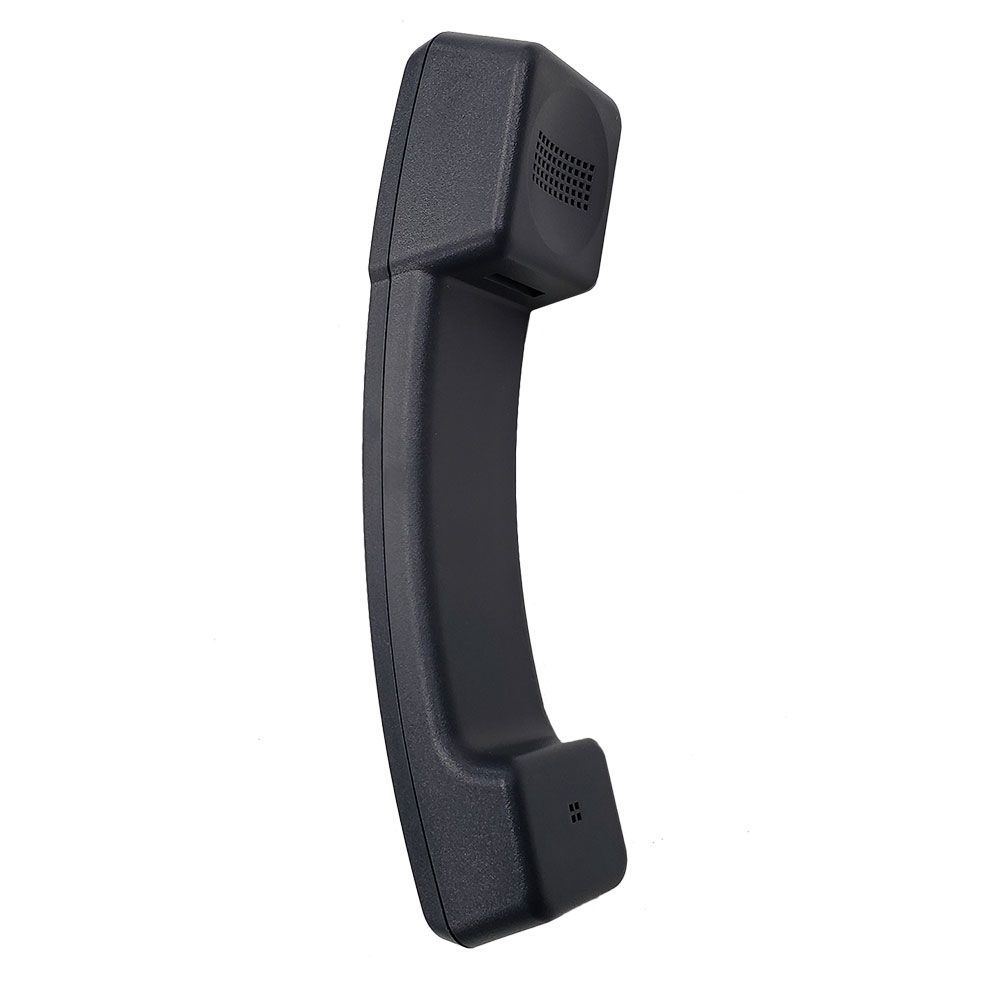

- Handset and handset cord

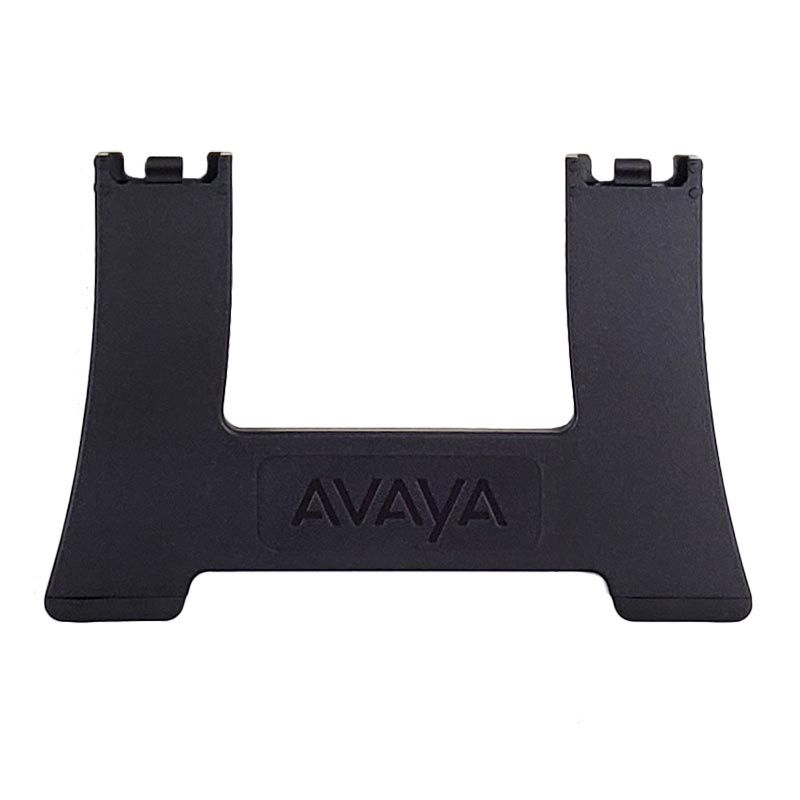

- Desk base

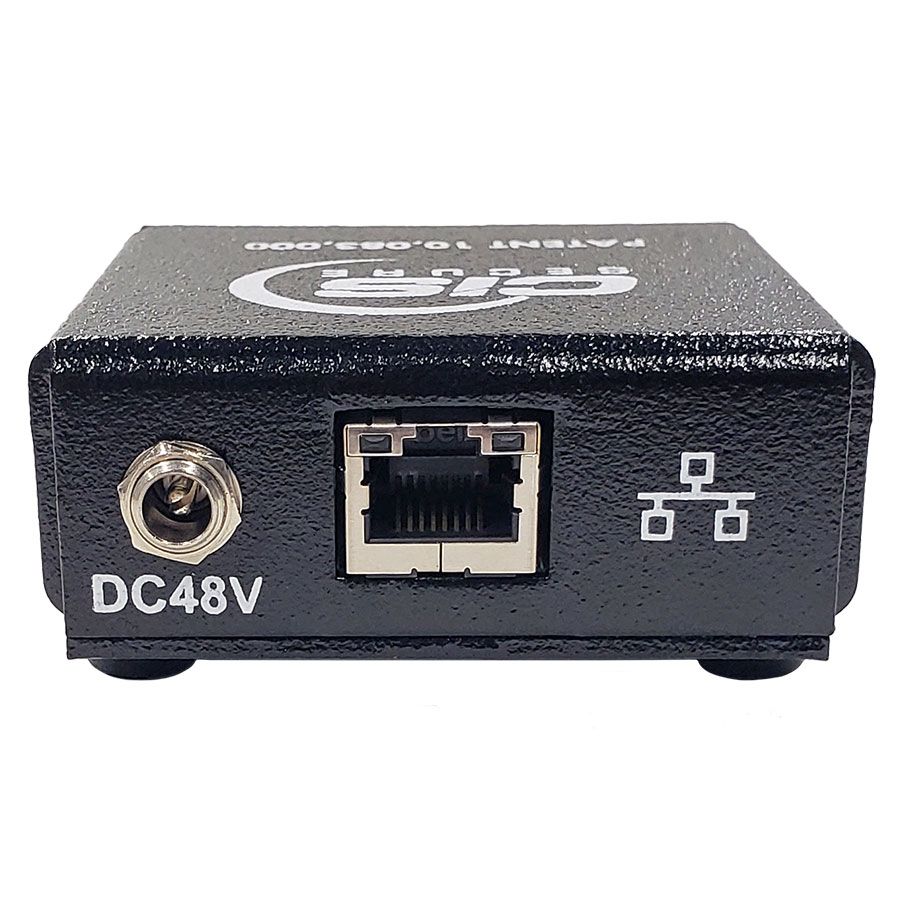

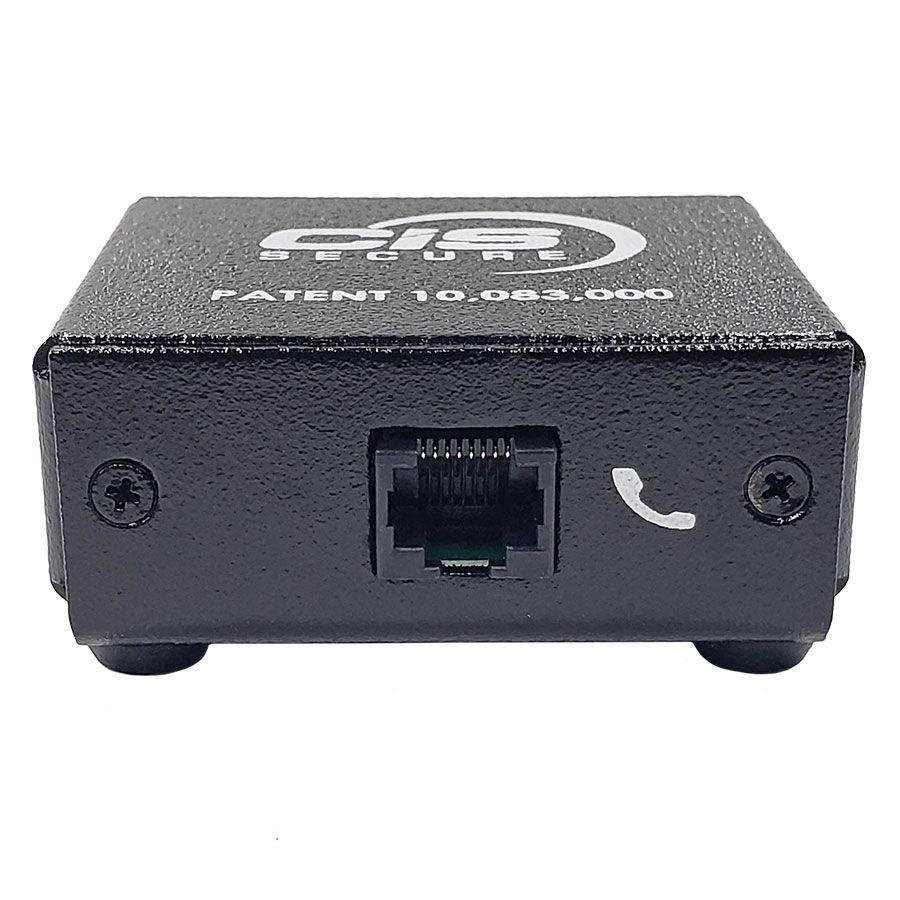

- CIS Secure power interface (DTD-VOIP-PI-02)

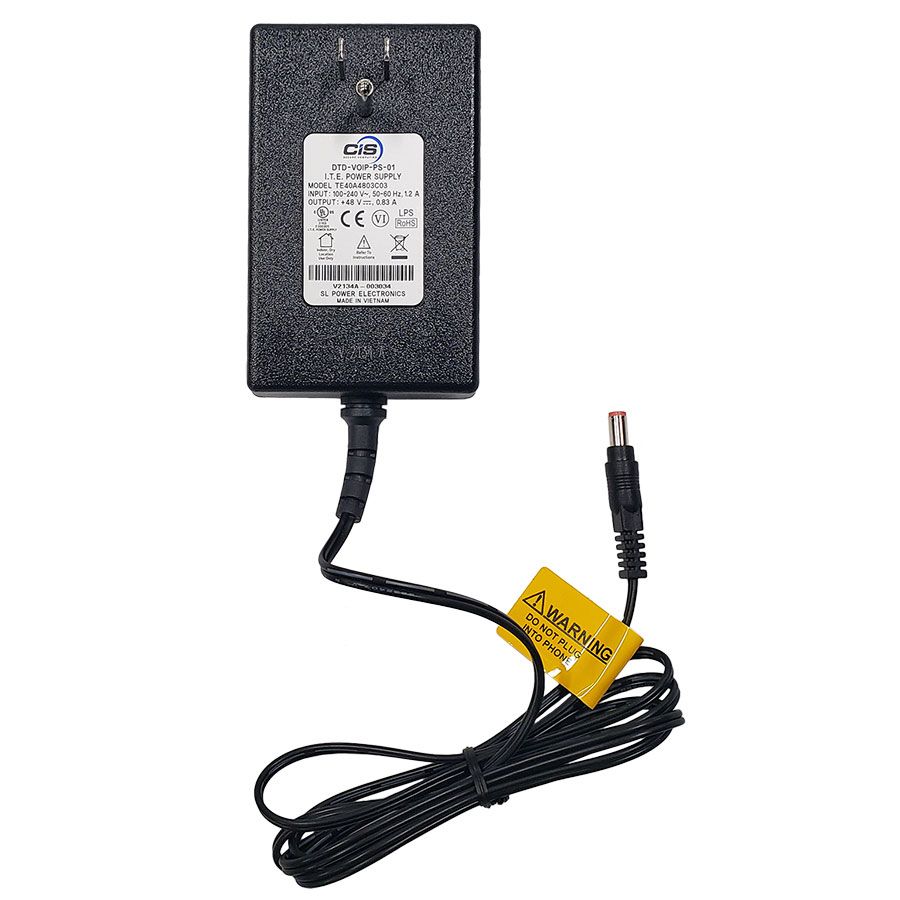

- Power supply (DTD-VOIP-PS-01)

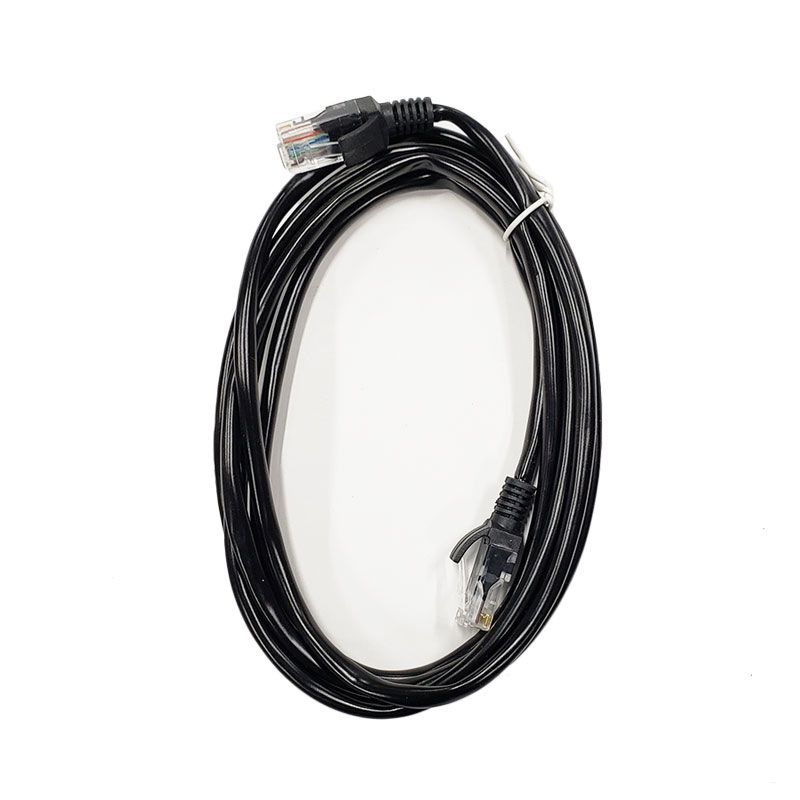

- Network cable
