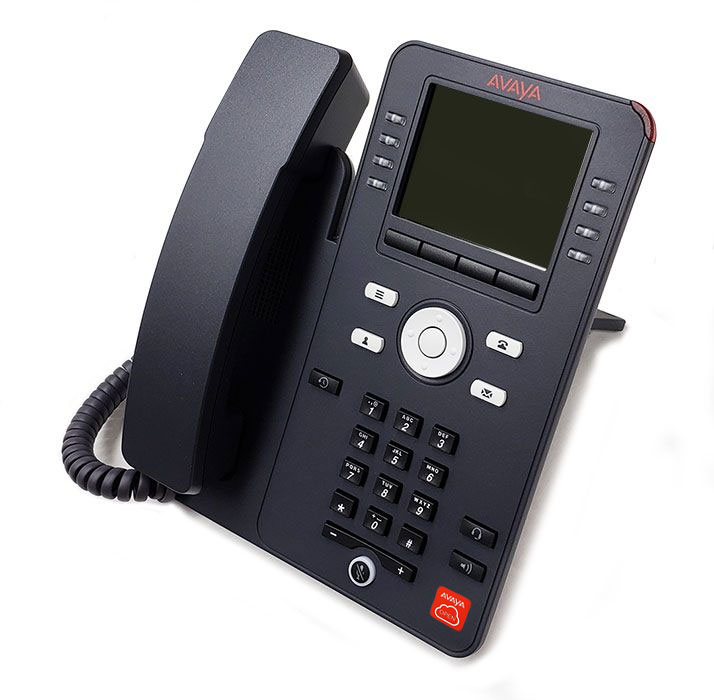

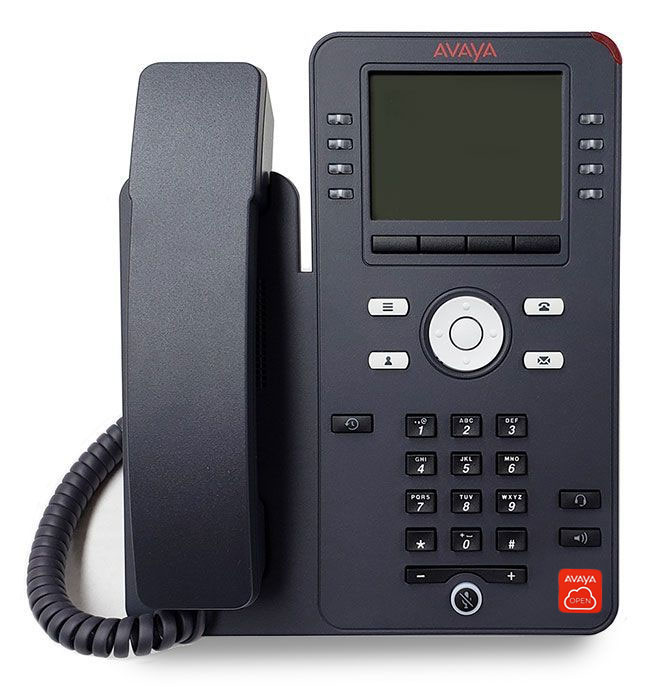

Avaya J169 3PCC IP Phone (700513636)

This model features third-party call control (3PCC) using the open SIP protocol, making it interoperable with a broad range of VoIP phone systems. It cannot be used with Avaya Aura or Avaya IP Office.

• 3.5” (diagonal) grayscale display - 320 x 240 pixels
• Multi-line IP phone
• 8 line-feature keys with dual LEDs (red/green)
• 4 context sensitive soft keys
• 24 programmable button slots for call appearance and feature buttons; 3 pages of 8 (Dual Column Mode) or 6 pages of 4 (Single Column Mode)
• Wideband audio in handset and headset
• Integrated RJ9 headset port with Electronic Hook Switch (EHS)
• Built in volume boost control in handset for hearing impaired
• Mute key with mute alerting
• Dual 10/100/1000 Gigabit Ethernet ports to support co-located PC
• Supports up to three JBM24 Button Modules which can all be powered by PoE or PoE injector
• Supports up to three JEM24 Expansion Modules - Up to two JEM24 Expansion Modules can be powered by PoE or PoE injector; external 5V power supply (see accessory below) is required if adding more than two JEM24
• Power over Ethernet Class 1 (class 2 with JBM24/JEM24) and support for 802.3az
• Powered via Power over Ethernet (PoE), optional PoE injector, or optional 5V power supply (sold separately; see drop down option above)

• Avaya Cloud Office by RingCentral
• Broadsoft Broadworks R22.0
• Zang Office R1.0
• Asterisk R16
• 3CX R15.5
• FreeSWITCH 1.8.5
• Netsapiens 40
• 3PCC version (third party call control) made for Non-Avaya 3rd party SIP platforms
• Cannot be used with Avaya IP Office or Avaya Aura
