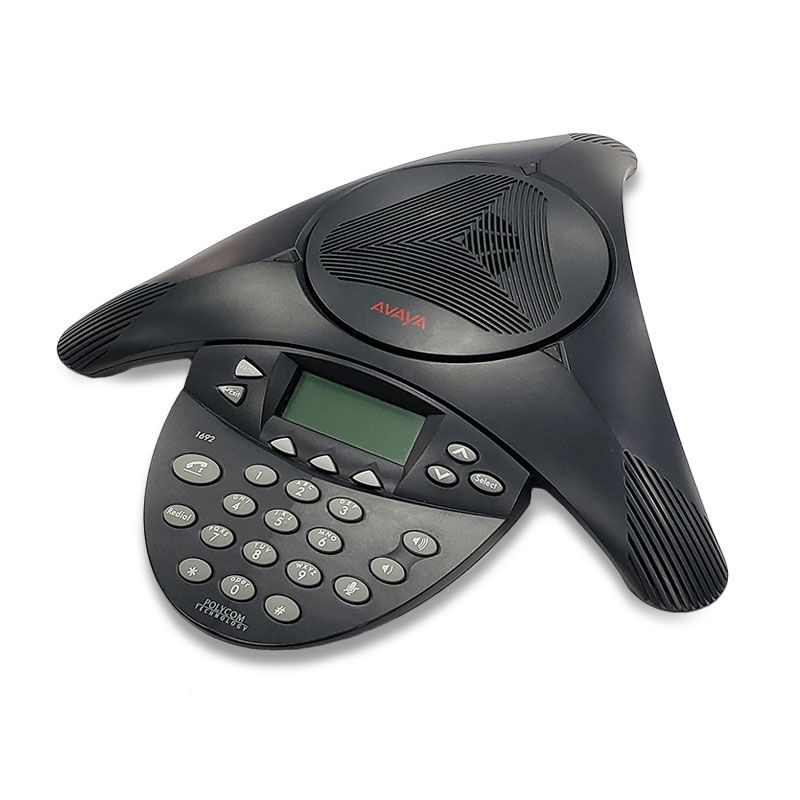

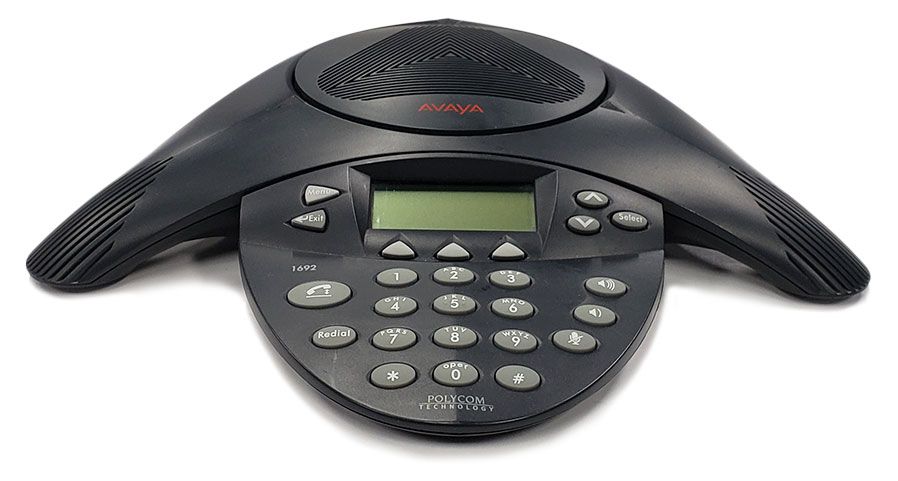

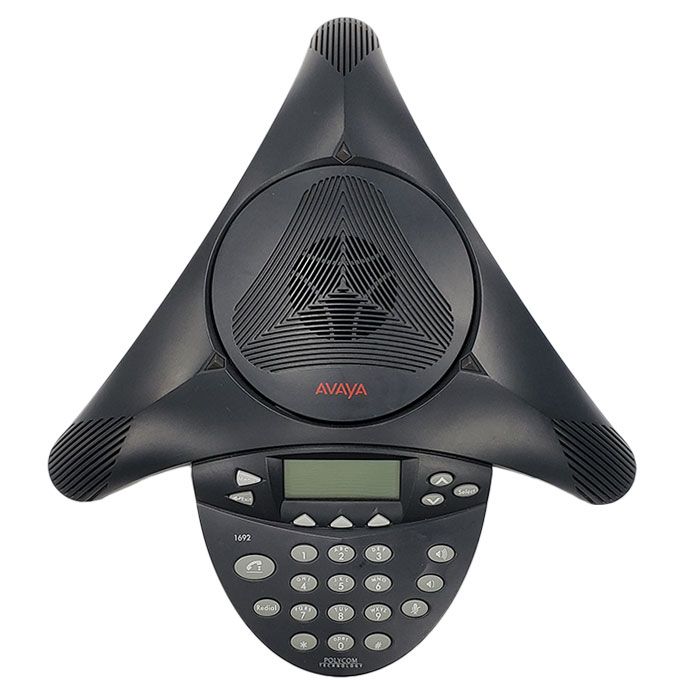

Avaya 1692 IP Speakerphone (700473689)

The Avaya 1692 is an IP conference phone made for use with Avaya Communication Manager (Aura) systems. It connects directly to your IP network and provides a tabletop conferencing solution for small, mid-size, and even larger conference rooms. The Avaya 1692 features crystal clear sound quality, 360 degree microphone pickup, an informative display, and access to the extensive feature set of the Avaya Communication Manager. In addition, you can add optional expansion microphones for greater coverage on longer conference tables.

• Full duplex speakerphone with 360 degree, 12 foot microphone coverage
• Can add two optional extended microphones for added coverage on longer conference tables (see accessory below)
• Room coverage - up to 20x20 ft. without extended microphones; up to 20x30 ft. with extended microphones
• High resolution backlit display w/3 soft keys
• 5 fixed feature and navigation keys
• 5 menu and navigation keys
• 12-key telephone keypad
• 10/100 Base T Ethernet connection
• Supports G.711, G.729a, G.722, and Siren 14 voice codecs
• Dynamic and static addressing
• 5 personalized ring patterns
• Optional expansion microphones for larger conference tables/rooms (sold separately; see drop down menu below)
• Powered via 802.3af Power over Ethernet (PoE) or optional local Power over Ethernet injector (not included, see drop down menu above)

• Avaya Aura (Communication Manager) R4.0 or higher
• TN799C or higher
• TN2302AP IP MedPro
• Note: S8300 Media Server does not require TN799C or TN2302AP

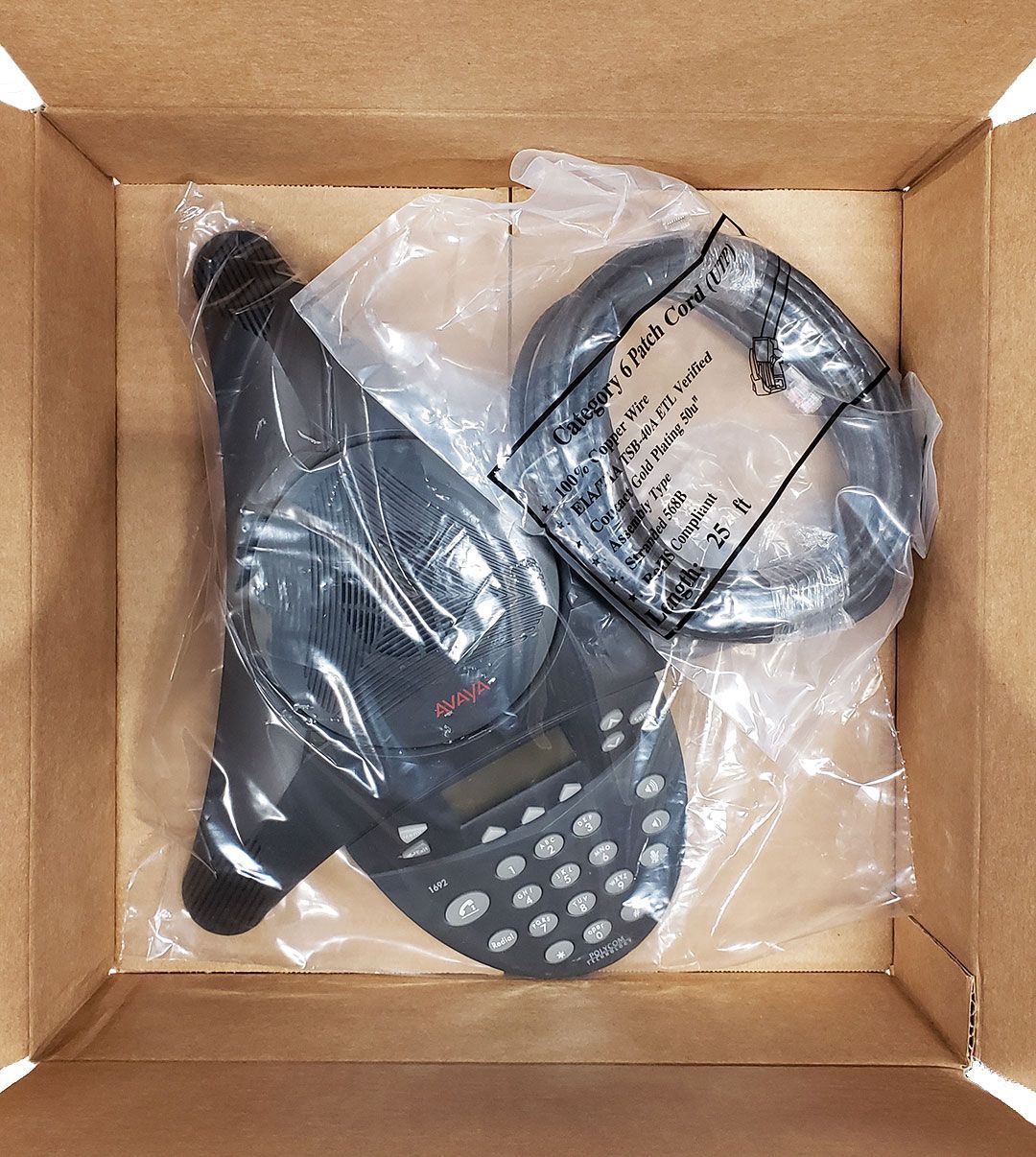

• Avaya 1692 conference phone

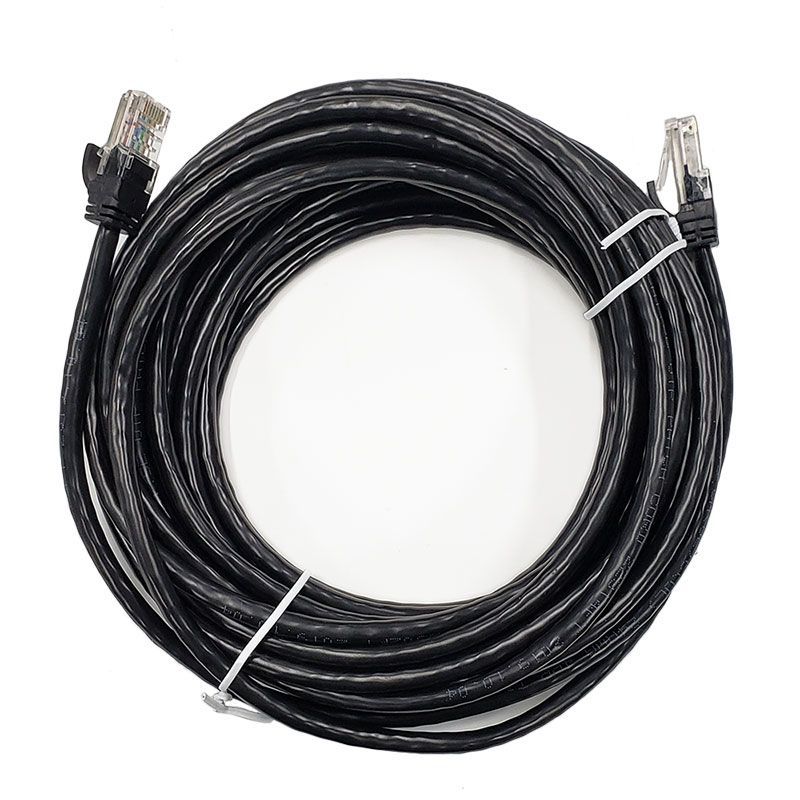

• Network cable (25 foot)

• Avaya 1692 Datasheet
• Avaya 1692 Quick Reference
