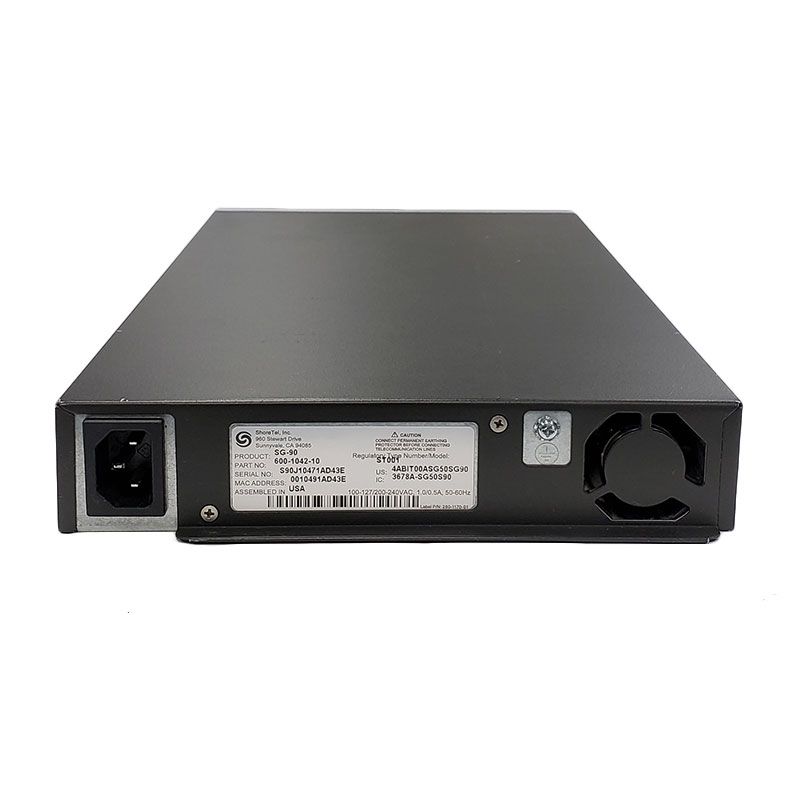

The ShoreGear-90 is a 1U half-width voice switch that supports up to 90 IP phones and up to a maximum of 12 analog ports - 8 loop start trunk and 4 analog extension ports. The ShoreGear-90 communicates with IP phones, soft phones and other IP endpoints using the Media Gateway Control Protocol (MGCP). The ShoreGear-90 interfaces to standard analog trunks using loop start or wink start signaling as well as to standard analog telephones including CLASS feature phones with Caller ID Name and Number and Message Waiting.
ShoreGear 90 Features
2 RJ-45 local area network (LAN) connectors
1 RJ-21X port for punchdown block, patch panel, or 12-port harmonica connector
Up to 90 IP phones
8 loop start trunks (FXO)
4 telephone ports (FXS)
4 DID trunks (US and Canada)
Up to 90 SIP trunks without media proxy
Up to 12 SIP trunks with media proxy
12 Make Me conference ports
1 DB-9, RS-232C maintenance port for serial communications
1 3.5 mm stereo input for connecting a music-on-hold source
1 3.5 mm stereo output for connecting to a overhead paging system or night bell
