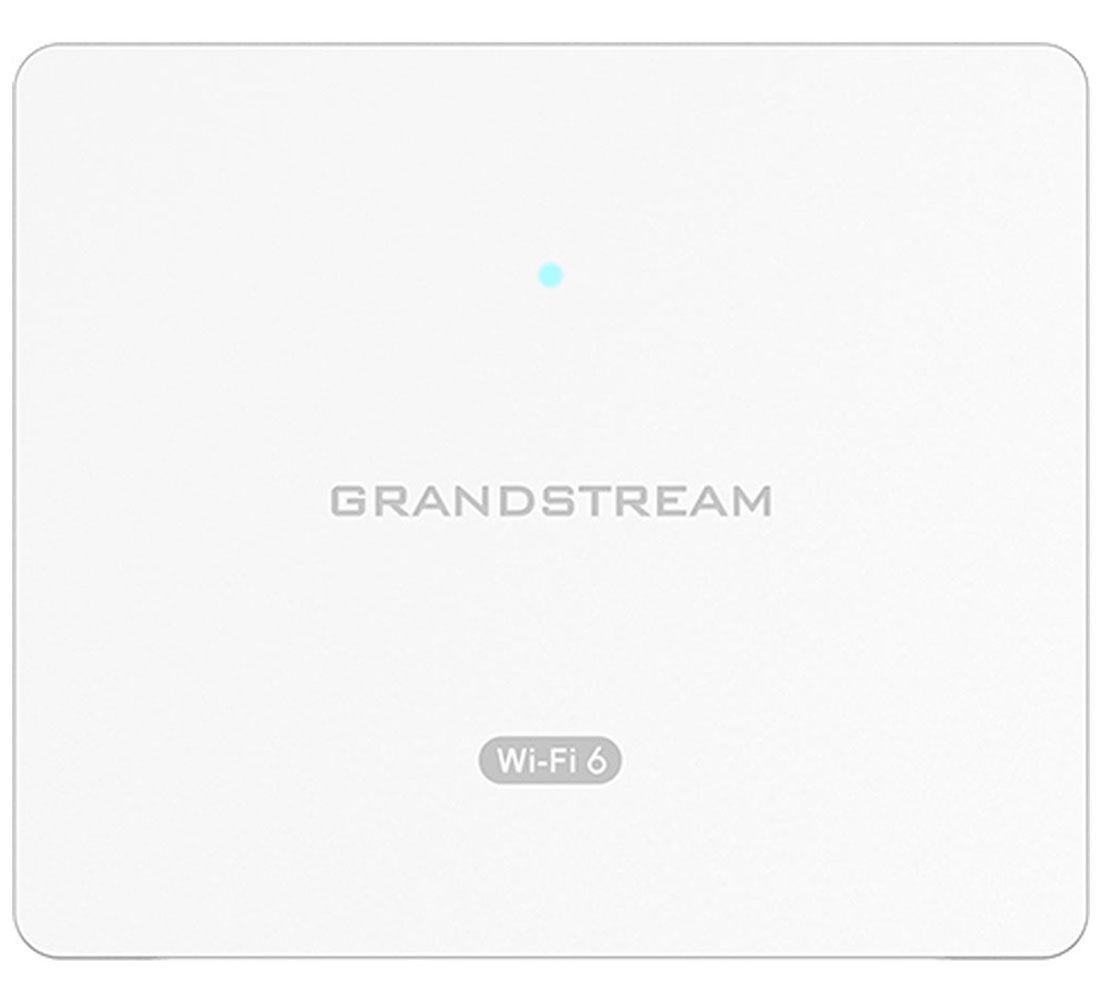

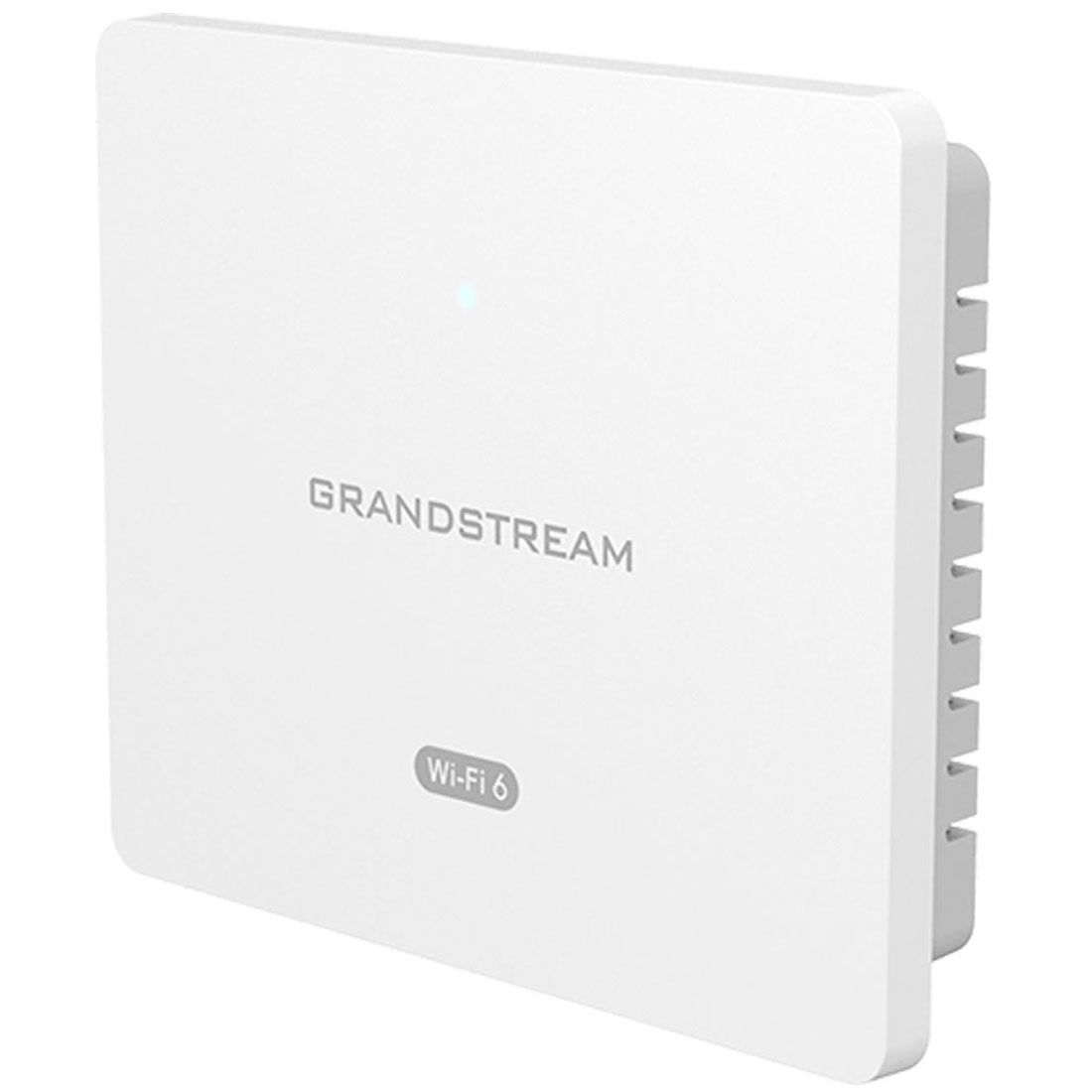

Grandstream GWN7604 Indoor Wi-Fi Access Point

The GWN7604 is a compact AX3000 Wi-Fi 6 access point designed for small businesses, hotels, and home offices. It provides versatility through four Gigabit ethernet ports, including one uplink port that can receive PoE/PoE+ to power the access point, and two ports with PSE that can provide PoE and a network connection to other devices. The GWN7604 offers dual-band 2.4G 2x2:2 and 5G 3x3:2 MU-MIMO technology and a sophisticated antenna design to support 256 concurrent clients and up to 100-meter coverage range. This Wi-Fi access point can be easily installed and managed using GDMS Networking and GWN Manager, Grandstream’s cloud and on-premise network management platforms. With support for advanced QoS, low-latency real-time applications, mesh networks, captive portals, 3Gbps wireless throughput, and four Gigabit network ports, the GWN7604 is the ideal Wi-Fi access point for small-to-medium sized deployments that require flexibility.

• Compact AX3000 Wi-Fi access point designed for small businesses, hotels, and home offices
• Provides (4) Gigabit Ethernet ports including one uplink port that can receive PoE, and (2) ports with with PSE that can provide PoE
• Offers dual-band 2.4G 2x2:2 and 5G 3x3:2 MU-MIMO technology and a sophisticated antenna design to support 256 concurrent clients
• Up to 100 meter coverage
• Can be easily installed and managed using GWN.Cloud and GWN Manager
• Embedded controller can also manage up to 50 local GWN APs
• 3Gbps aggregate wireless throughput
• WEP, WPA/WPA2-PSK, WPA/WPA2 Enterprise (TKIP/AES); WPA3
• Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate/random default password per device
• Advanced QoS to ensure real-time performance of low-latency applications

• Grandstream GWN7604 access point
• (2) Screw anchors
• (2) Screws

• Grandstream GWN7604 Datasheet
• Grandstream GWN7604 Quick Installation Guide
