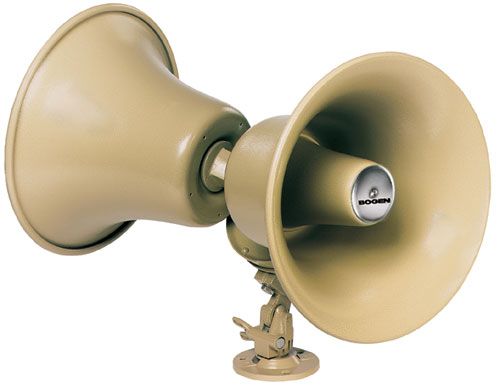

Bogen BDT30A Bi-Directional Paging Horn Loudspeaker (30 Watt) | The Bogen BDT30A is a compact paging loudspeaker designed for one- or two-way sound and communication systems It is ideal for use in industrial plants, warehouses, schools, construction sites, transportation terminals, and recreational areas.
Bogen BDT30A Features
- Twin reentrant horns for bi-directional projection
- High intelligibility and efficiency
- Ideal for both one-way and talkback paging applications
- Weatherproof
- Sturdy, all-metal construction
- 30 watts max. at 70V operation or 15 watts max at 25V operation
- Tap settings for 70V: 30, 15, 7.5, 3.7, 1.8 watts; for 25V: 15, 7.5, 3.7, 1.8 watts
- Rotary tap impedance selector switch
- Screw terminals make installation fast and easy
- For indoor and outdoor use
- Uniquely designed all-purpose mounting bracket for simple installation
- Self-aligning, field-replaceable diaphragm for easy maintenance
- Mountable to I-beam flange using Bogen’s BC1 Beam Clamp (sold separately)
- Mountable to electrical box using Bogen’s HSES10 mounting strap (sold separately)
- Terminal Cover (TCSPT1) allows connection of conduit fittings to horn speakers (sold separately)
|
 |
