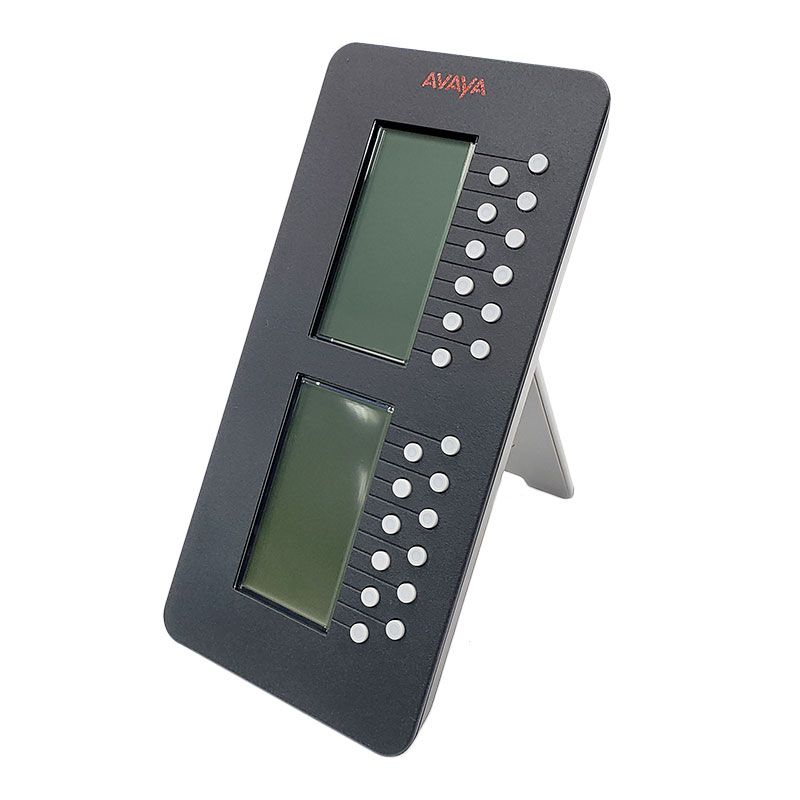

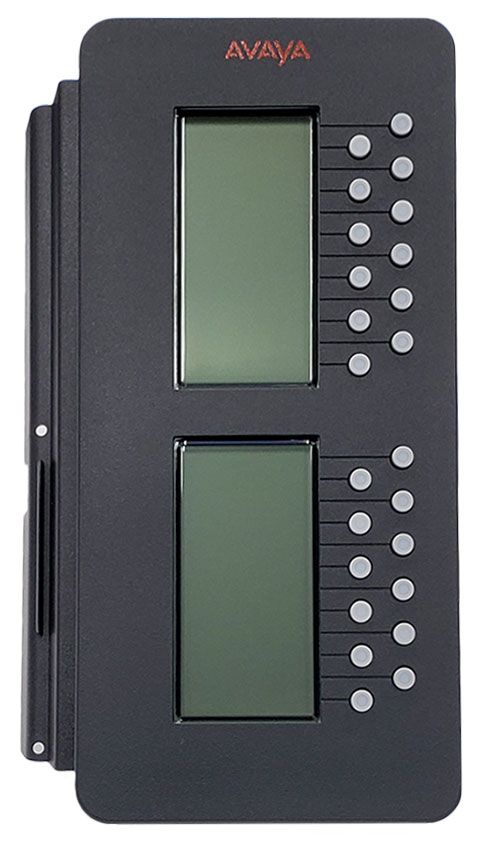

Avaya SBM24 Button Module (700383417, 700426737, 700462518)

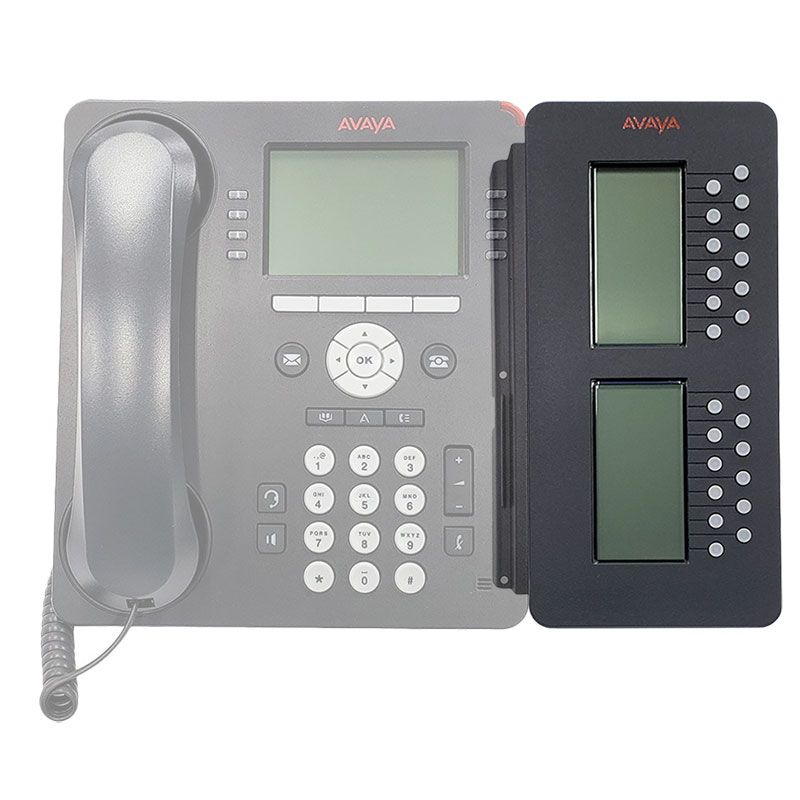

The Avaya SBM24 button module provides 24 additional programmable line and feature buttons for Avaya 9600 series IP telephones.
Avaya SBM24 Features
- Provides 24 additional lines for incoming calls, outgoing calls, and calling features
- No separate power supply needed. However, using more than one button module changes the power class of the phone to Class 3
- IP Office 6.0 to 8.1 - Compatible with Avaya 9630, 9630G, 9640, 9640G, 9650, an 9650C IP telephones. Can add up to 3 SBM24 modules per phone; up to 42 SBM24s per system.
- IP Office 9.0 or higher - Compatible with Avaya 9608, 9608G, 9611G, 9630, 9630G, 9640, 9640G, 9641G, 9650, and 9650C IP telephones. Can add up to 3 SBM24 modules per phone; up to 42 SBM24s per system.
- Avaya Communication Manager R4.0 or higher - Can add up to 3 SBM24 modules per phone
- Avaya Communication Manager below R4.0 - Support for one SBM24 per phone
