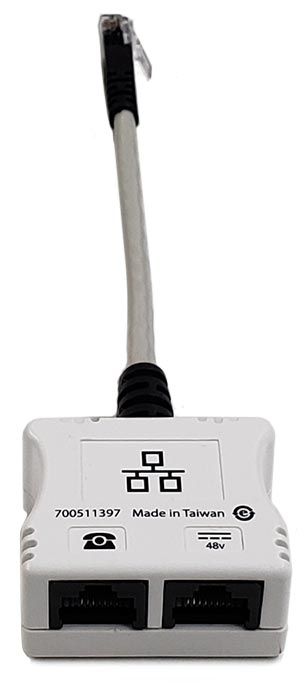

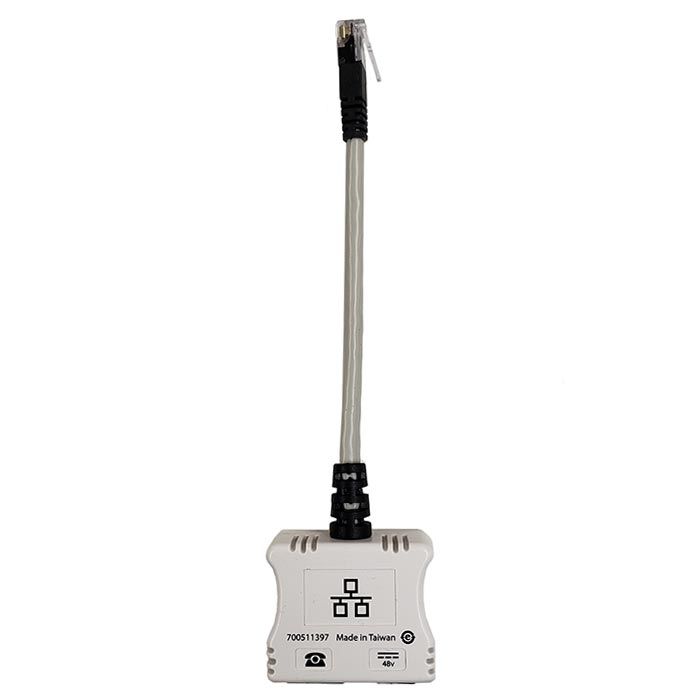

Avaya Y-Adapter for PoE Injector (700511777, 700511397)
The Avaya 1151C1 power supply is required to power Avaya 9408/BM12, 9508/BM12 and Avaya 1416/DBM32 configurations, but Avaya no longer produces the standalone 1151C1. The Avaya Y-Adapter for PoE Injector converts the Avaya SPPOE-1A PoE Injector to the same power pinouts as the 1151C1. The combination of the Avaya Y-Adapter for PoE Injector and the Avaya SPPOE-1A PoE Injector is the current solution for powering Avaya 9408/BM12, Avaya 9508/BM12 and Avaya 1416/DBM32 configurations.
Y-Adapter for PoE Injector Features

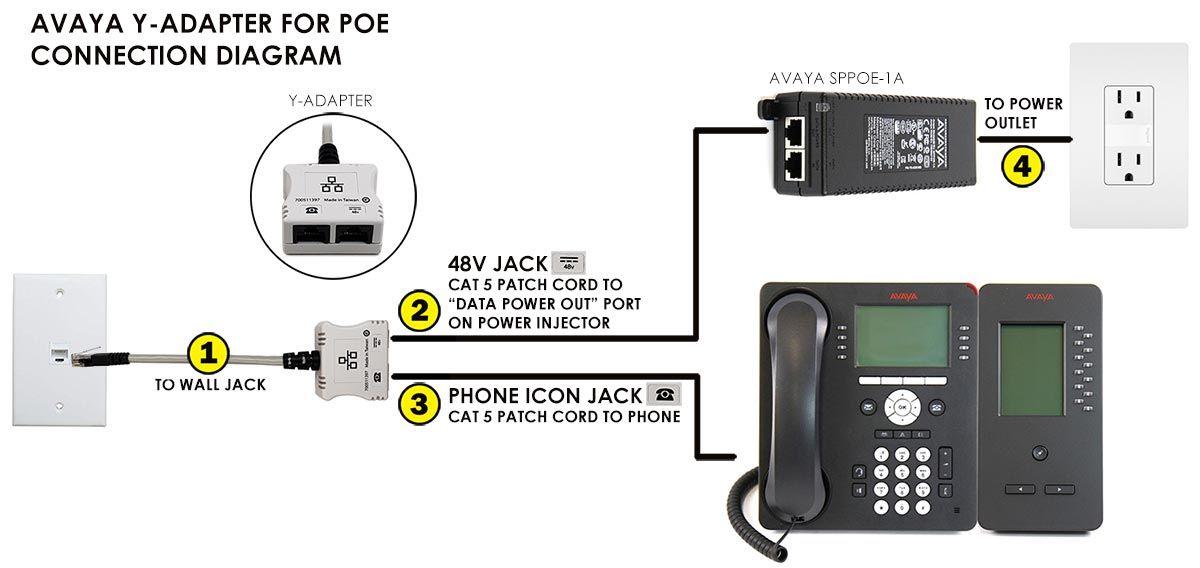

Adapter that converts Avaya SPPOE-1A PoE Injector "Data Power Out" port pinouts to Avaya 1151C1 power pinouts
Provides power solution when adding the Avaya BM12 Button Module to the Avaya 9408 or 9508 Digital Telephone
Also provides power solution when adding the Avaya DBM32 Button Module to the Avaya 1416 Digital Telephone
Compatibility
Requires Avaya SPPOE-1A Power Injector
Compatible with Avaya 9408 or 9508 Digital Telephone and Avaya BM12 Button Module combination
Compatible with Avaya 1416 Digital Telephone and Avaya DBM32 Button Module combination
The Y-Adapter requires an RJ-45 wall jack
OEM compatible with Avaya part numbers 700511777 and 700511397
