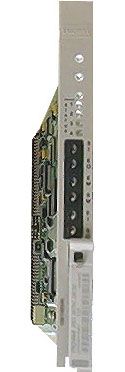

TN2464CP DS1 Interface Circuit Pack

TN2464CP Features
  • Supports DS1 Rate (24 Digital Channels) and E1 Rate (32 Digital Channels)
  • All versions support CO, TIE, DID and OPS (Off - Premises Stations) port types using the robbed signal protocol, proprietary bit-oriented signaling, (BOS) 24th channel signaling protocol, and the DMI-BOS 24th channel signaling protocol
  • All versions also support ISDN-PRI connectivity
  • TN2464BP provides echo cancellation and downloadable firmware capabilities for Definity Release 9 and later
  • TN2464BP backwards compatible with earlier Definity Releases
  • Firmware download feature requires use of the TN799C C-LAN interface

Buy with Confidence.  Your order also includes
MetrolineDirect's Rock Solid One Year Warranty
PLATINUM PROTECTION:  This product is eligible for a 2 Year Replacement Warranty!



TN2464CP DS1 Interface Circuit Pack
63316CP$865.00
Type:
Warranty:

Avaya 120A2 CSU Module (Channel Service Unit)Avaya 120A2 CSU Module (Channel Service Unit)

Avaya 120A2 CSU Module (Channel Service Unit)

120A2 CSU Features
  • In combination with a DS1 circuit pack, it provides the essential functions of external CSUs
  • Small size, easier to install than external CSU
  • Does not require any option switch settings or DS1 cable
  • Vintage 2 (120A2) provides enhancements to support the payload loopback function available when the ESF framing format is selected (requires 700A loopback jack)

Compatibility
  • The 120A2 CSU Module is compatible with the following DS1 circuit packs:
    • TN464E to TN464HP
    • TN2464CP and earlier
    • TN767D or TN767E
    • TN2313 or TN2313AP
  • Supported on Definity, Multivantage, and Communication Manager servers that support TN circuit packs

Buy with Confidence.  Your order also includes
MetrolineDirect's Rock Solid One Year Warranty
PLATINUM PROTECTION:  This product is eligible for a 2 Year Replacement Warranty!


Avaya 120A2 CSU Module (Channel Service Unit)
63185$55.00
Type:
Warranty:
