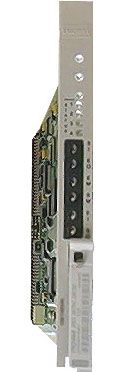

Click to enlargeTN2464 DS1 Interface

  • Supports T1 (24-channel) and E1 (32-channel) digital facilities
  • In ISDN-PRI applications, the ISDN D-channel connects to a TN778 packet control and the TN765 packet processor interface (R8 or later si) or the TN1655 packet interface (R8r or later) via the LAN bus
  • Has the same functionality as the TN464F, which is for US and Canada offers only
  • Test jack access to the T1/E1 line
  • Board level administrable A-Law and m-Law companding
  • CRC-4 generation and checking (E1 only)
  • Stratum 3 clock capability
  • Support for the 120A ICSU
  • Support for Conversant
  • CO, TIE, DID, OPS port types that use robbed-bit signaling protocol, proprietary bit-oriented signaling (BOS) 24th channel signaling protocol, or DMI-BOS 24th channel signaling protocol
  • Support for Russian incoming ANI

Buy with Confidence.  Your order also includes
MetrolineDirect's Rock Solid One Year Warranty
PLATINUM PROTECTION:  This product is eligible for a 2 Year Replacement Warranty!



TN2464 DS1 Interface
63250GR$149.00
Type:
Warranty:

Avaya 120A2 CSU Module (Channel Service Unit)Avaya 120A2 CSU Module (Channel Service Unit)

Avaya 120A2 CSU Module (Channel Service Unit)

120A2 CSU Features
  • In combination with a DS1 circuit pack, it provides the essential functions of external CSUs
  • Small size, easier to install than external CSU
  • Does not require any option switch settings or DS1 cable
  • Vintage 2 (120A2) provides enhancements to support the payload loopback function available when the ESF framing format is selected (requires 700A loopback jack)

Compatibility
  • The 120A2 CSU Module is compatible with the following DS1 circuit packs:
    • TN464E to TN464HP
    • TN2464CP and earlier
    • TN767D or TN767E
    • TN2313 or TN2313AP
  • Supported on Definity, Multivantage, and Communication Manager servers that support TN circuit packs

Buy with Confidence.  Your order also includes
MetrolineDirect's Rock Solid One Year Warranty
PLATINUM PROTECTION:  This product is eligible for a 2 Year Replacement Warranty!


Avaya 120A2 CSU Module (Channel Service Unit)
63185$55.00
Type:
Warranty:
