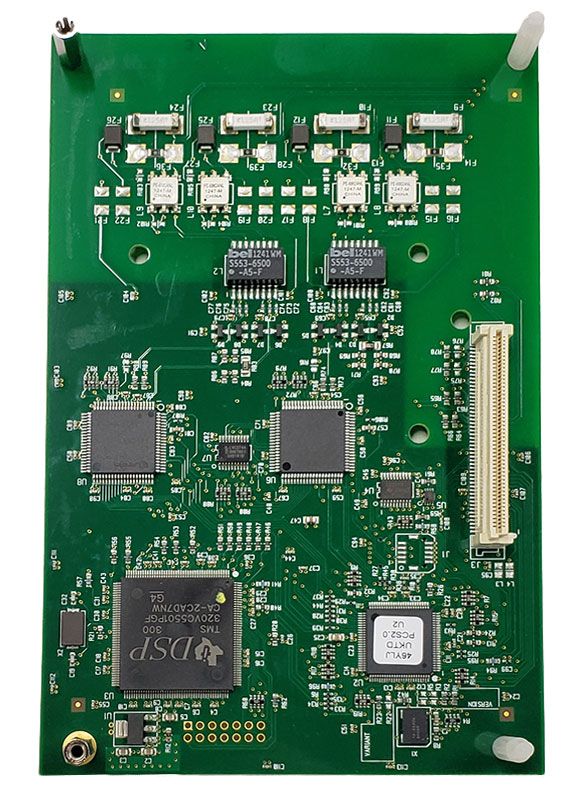

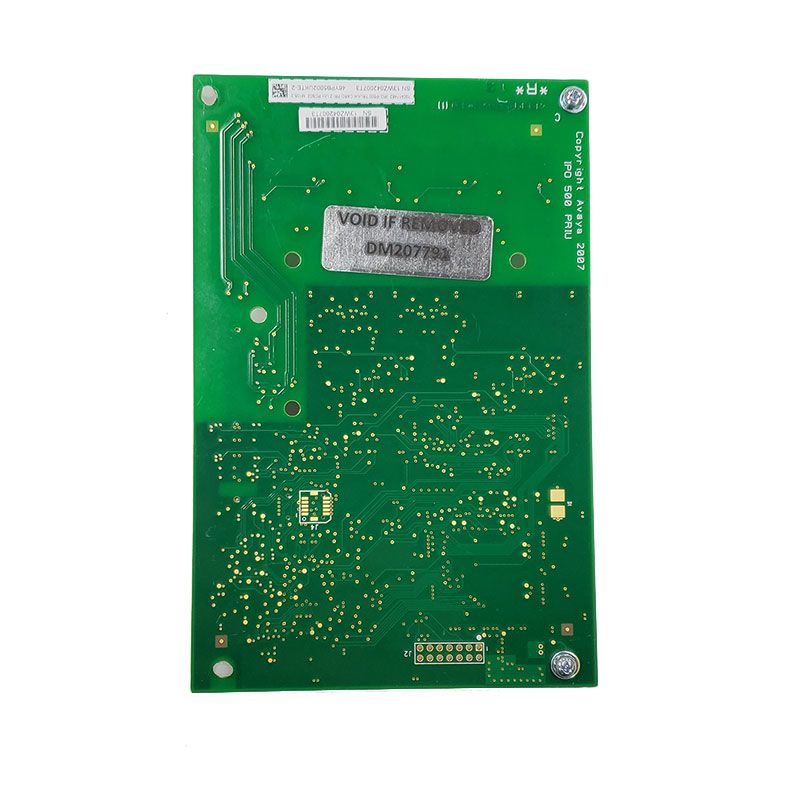

Avaya IP500 Universal PRI 2 Daughter Card (700417462)
The Avaya IP500 Universal PRI 2 provides two T1/PRI trunk port on your Avaya IP Office system.
Avaya IP500 Universal PRI 2 Features

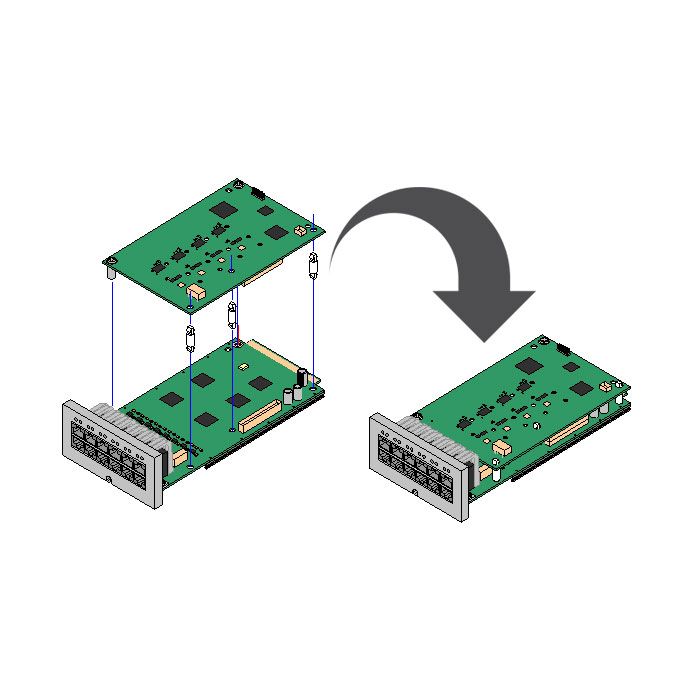

- Daughter board that installs on IP500 base card
- Ports/Channels - 2 PRI trunk port. Connections via port 9 of the host IP500 base card.
- Supports the following PRI modes:
- T1 robbed bit (24B channels per port) T1 PRI (23B+D channels per port)
- E1 PRI (30B+D channels per port)
- E1R2 PRI (30B channels per port)
- Initially supports 8 unlicensed B-channels on each port
- Additional channels are activated by IP500 Universal PRI licenses
- Maximum - 4 per IP500 control unit
- Compatible with Avaya IP500 Digital Station 8, IP500 Combination ATM, IP500 VCM 32/64, IP500 Analog Phone 2/8
- Compatible with IP Office R4.1 or higher
