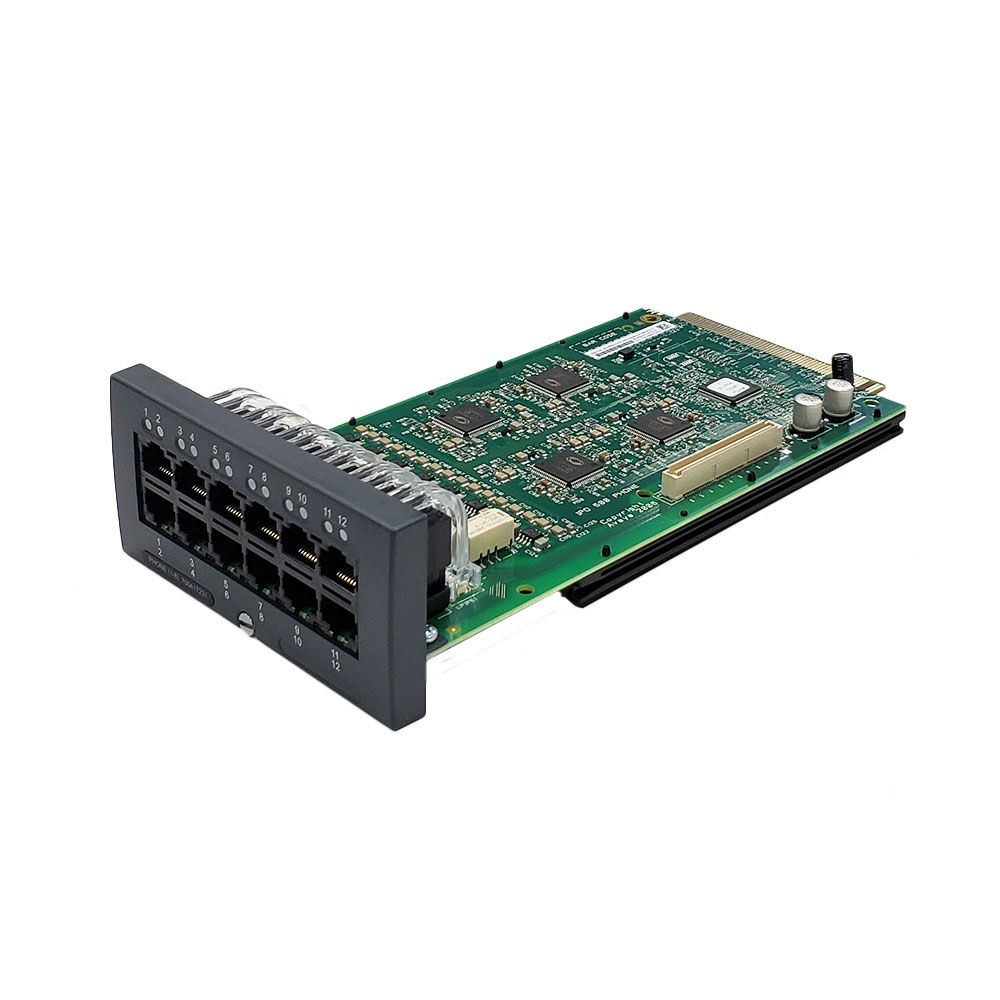

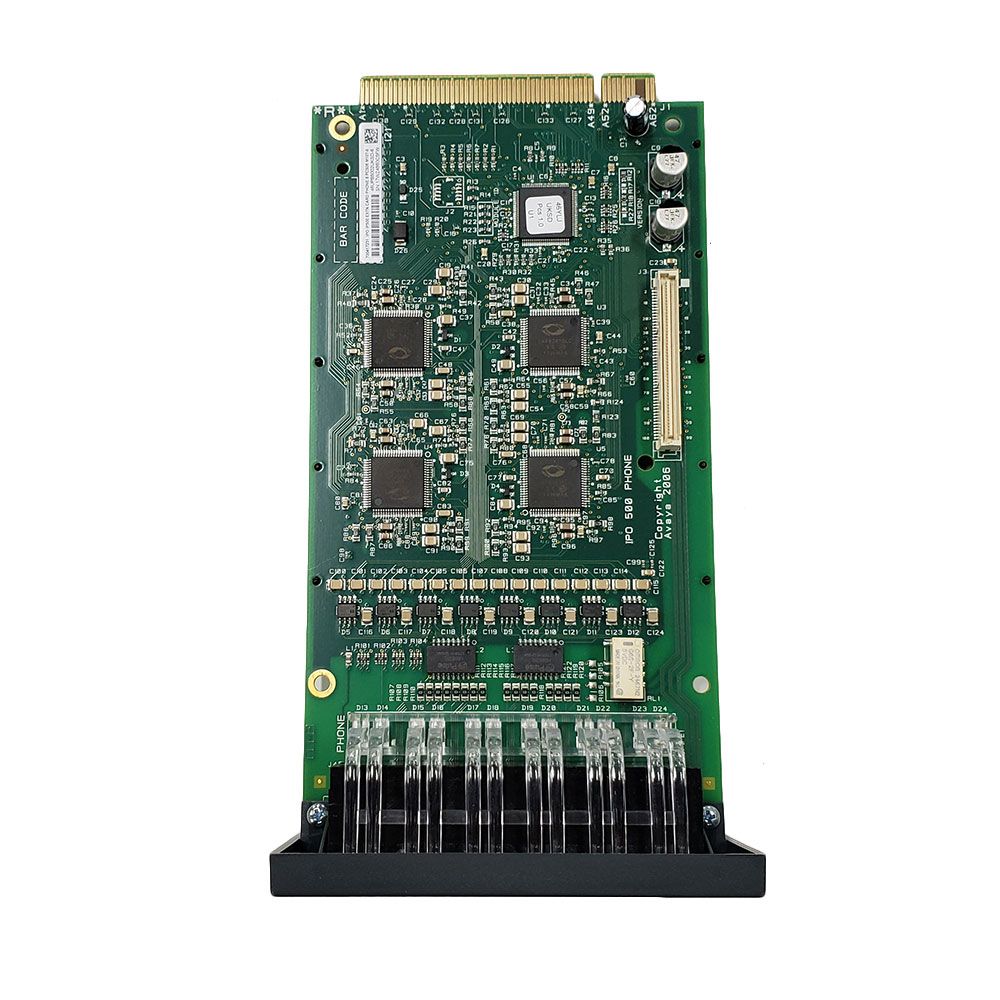

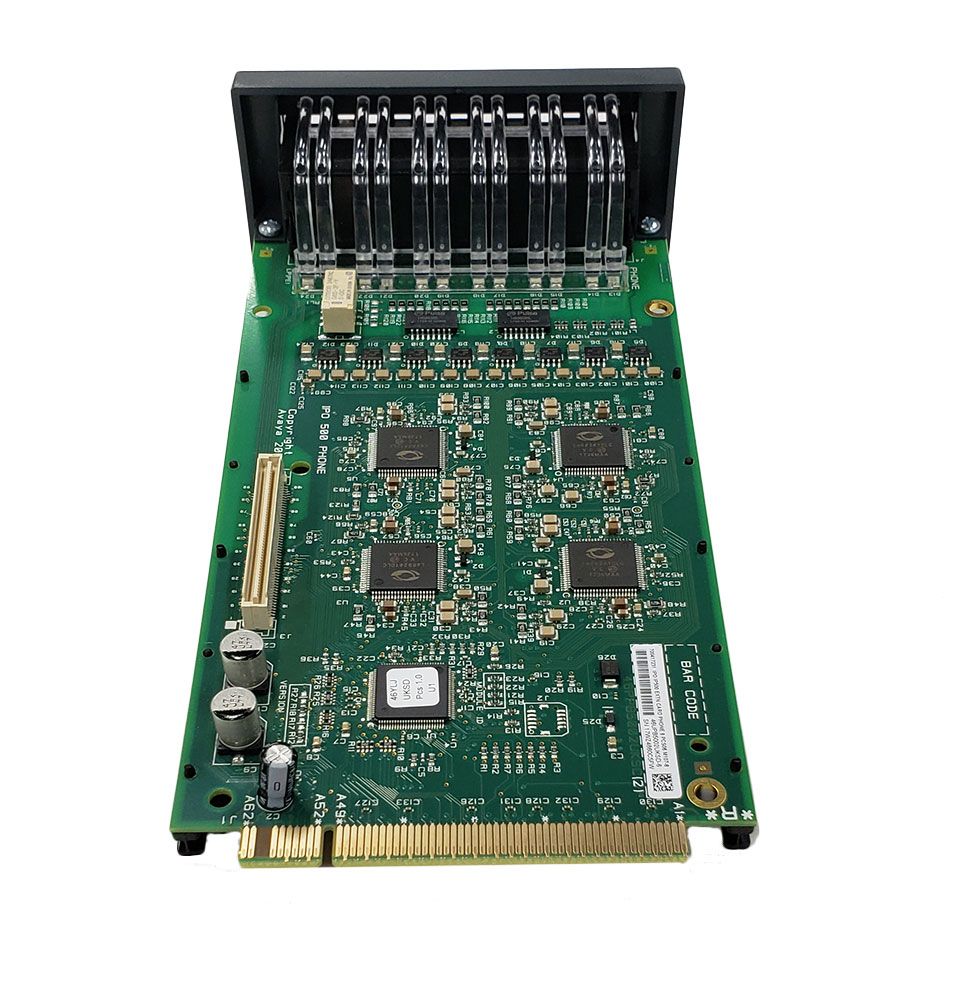

Avaya IP500 Analog Phone 8 (700417231)

The Avaya IP500 Analog Phone 8 provides additional analog station ports for your Avaya IP500 system.
Certified Refurbished: $139.99
New: $269.99
7400-105
Condition
Warranty
Quantity
This product is eligible for 2 Year Platinum Protection!

Avaya IP500 Analog Phone 8 Features

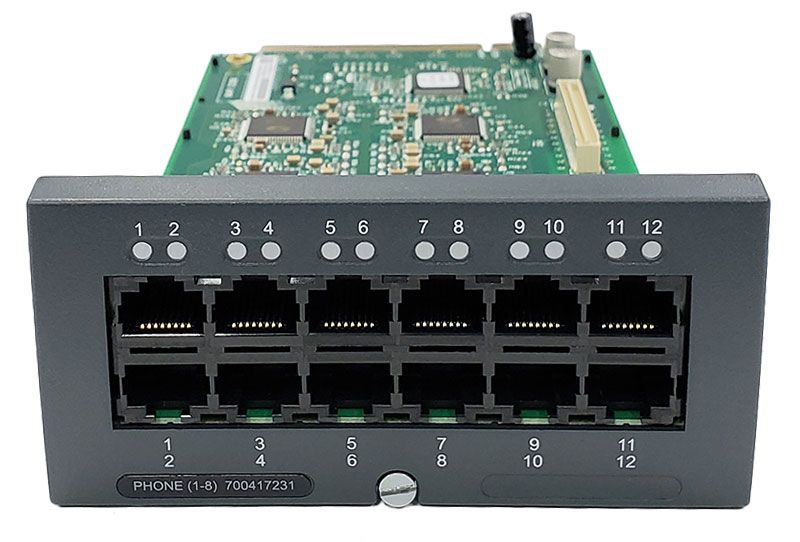

  • Provides 12 RJ45 ports - The first 8 ports are analog extension ports for the connection of analog telephones. It can be fitted with an IP500 trunk interface card that uses an additional 4 ports for connections.
  • Power Failure Transfer - When fitted with an IP500 Analog Trunk daughter card, the combination supports 1 power failure extension to trunk (loop-start only) connection
  • Maximum - 4 per IP500 or IP500 V2 control unit running IP Office; 3 per IP500 V2 control unit running IP Office Partner Version

Compatibility

  • Compatible with IP500 Control Unit running IP Office R5.0 or higher
  • Compatible with IP500 V2 Control Unit running IP Office R6.0 or higher or IP Office Partner Version
  • Compatible with analog telephones
  • Optional IP500 trunk interface cards - IP500 Analog Trunk 4, IP500 Universal PRI 1, IP500 Universal PRI 2



Accessories and Related Items

Avaya IP500 Analog Trunk Card 4 Universal (700417405)
Avaya IP500 Analog Trunk Card 4 V2 Universal (700503164)
Avaya IP500 Analog Trunk Card 4 Universal (700417405)

Certified Refurbished: $36.77
7400-220
Condition
Warranty
Quantity


Avaya IP500 Analog Trunk Card 4 V2 Universal (700503164)

New: $138.99
7400-221
Condition
Warranty
Quantity


Avaya IP500 Universal PRI 1 (700417439)
Avaya IP500 Universal PRI 2 Daughter Card (700417462)
Avaya IP500 Universal PRI 1 (700417439)

Certified Refurbished: $116.88
New: $308.88
7400-230
Condition
Warranty
Includes 8 channels.  If you are adding more T1 channels, then please choose the correct IP Office Release (9.x or 10.x) below.
Channels for IPO 9.x
Channels for IPO 10.x
Quantity


Avaya IP500 Universal PRI 2 Daughter Card (700417462)

Certified Refurbished: $217.99
New: $499.99
7400-235
Condition
Warranty
Includes 8 channels per port.  If you are adding more T1 channels, then please choose the correct IP Office Release (9.x or 10.x) below.
Port 1 Channels for IPO 9.x
Port 2 Channels for IPO 9.x
Port 1 Channels for IPO 10.x
Port 2 Channels for IPO 10.x
Quantity
