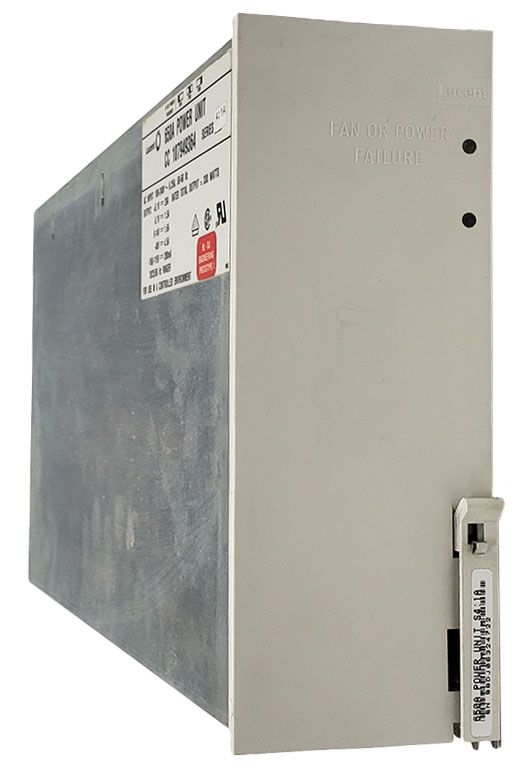

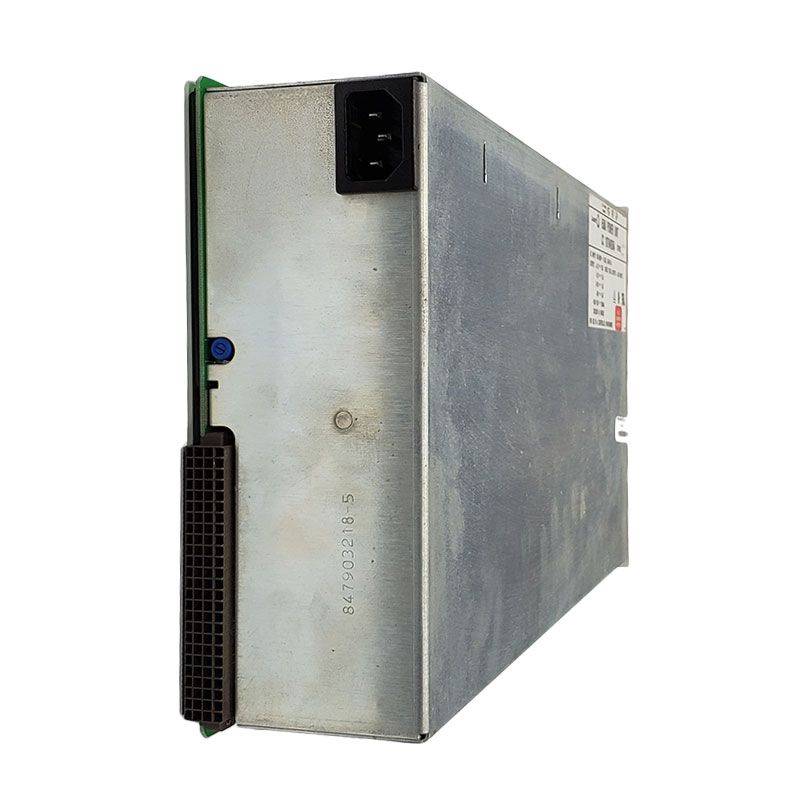

Avaya 650A AC Power Unit (CMC) 63406 |
Features
- Global power-factor-corrected AC/DC converter providing multiple DC outputs and AC ring outputs
- Autoranging and accepts 85-264 VAC, 47-63 Hz AC input
- Provides 330 Watts total output
- Provides multiple DC output as follows:
- +5.1 VDC, 28A
- -5.1 VDC, 1.0A
- -48 VDC, 4.5A
- +8 to +14 VDC, 1.6A (fan speed control
- -150?-115 VDC, 200 mA (neon bus)
- Provides 3 switch-selectable ring ouputs:
- 85 VAC RMS, 80 mA, 20 Hz, centered about -48 VDC, 180 mA
- 72 VAC RMS, 8 to 80 mA, 25 Hz, centered about -48 VDC, 180mA
- Two 28 VAC RMS (56 Veff), 220 mA, 50 Hz biased about -48 VDC and 0 VDC, 70 mA balance
|
|
